Equipment advantages
> Reasonable design, no damaged workpiece
> Super coating versatility
> Intelligent control
> Real-time monitoring



Equipment specification

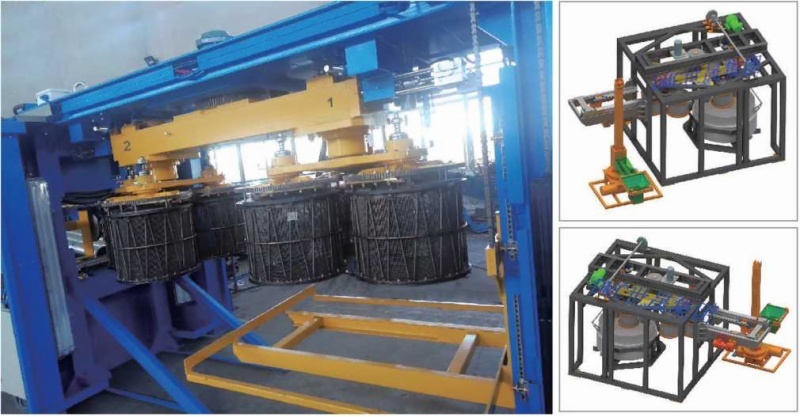

DCM500 six basket full-automatic coating machine can meet all kinds of chromium, chromium-free dacromet coating liquid (water and oil), and can also be used for other non-zinc aluminum coating parts surface coloring or sealing processing



Technical parameters/model number
Planetary full-automatic coating machine	DCM400	DCM500
Basket diameter	4> 400mm	4>500mm
Single basket capacity	20kg	40kg
Suitable workpiece length	w 100mm	这 150mm
Maximum production time	180s	180s
Theoretical maximum peak	1200kg	2400kg
Weighing system	1 (set)	1(set)
Drying power	5.5kw (ABB)	7.5kw (ABB)
